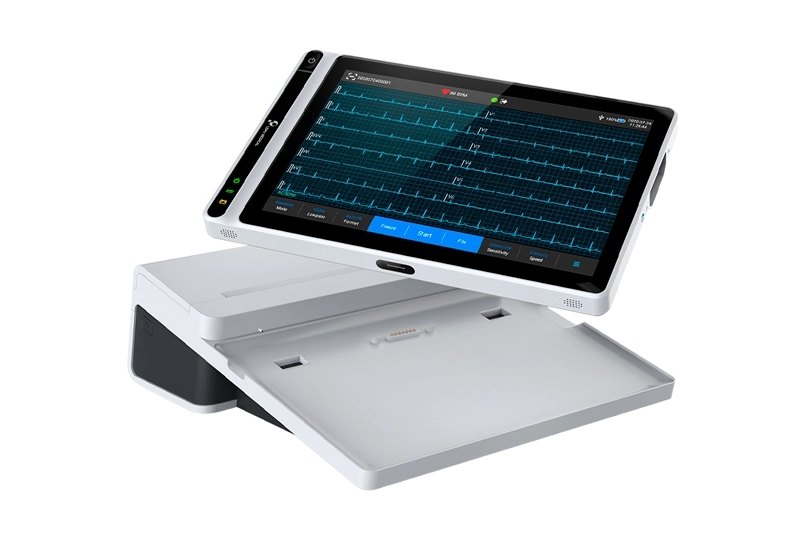

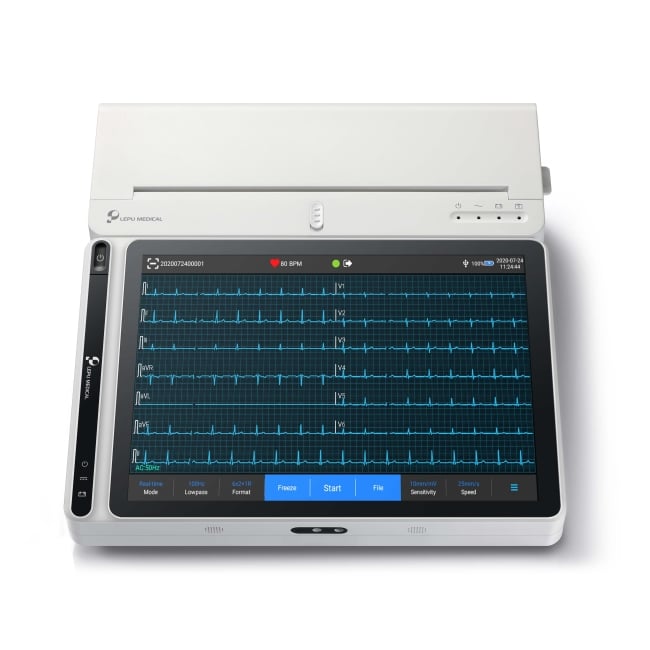

NeoECG T180 ECG Tablet with Docking Station & Printer
The NeoECG T180 is a state-of-the-art portable ECG tablet designed to provide comprehensive cardiac monitoring solutions for healthcare professionals. It features a 10.1-inch high-resolution colour touchscreen and an intuitive interface for easy operation. The device supports simultaneous acquisition and display of 9, 12, 15, or 18-lead ECG waveforms, ensuring detailed cardiac assessments. Its compact and lightweight design enhances portability, making it suitable for various clinical settings, including ambulatory monitoring.
The NeoECG T180 has an integrated docking station that includes a thermal printer, allowing for immediate printing of ECG reports. The device supports wireless transmission of ECG data via Wi-Fi and mobile networks, facilitating seamless integration with electronic medical record systems. Additional features include automatic pacing detection and marking, an anti-drift system to enhance diagnostic accuracy, and an integrated camera for efficient patient data entry through barcode scanning.
Specifications
Display: 10.1-inch color touch screen with 1280 x 800 resolution
Dimensions: Approximately 273 x 182 x 40 mm
Weight: 1.2 kg (tablet only); 1.5 kg with docking station
Power Supply: External DC power supply or built-in rechargeable lithium battery
Battery Life: Up to 10 hours of continuous operation
Leads Supported: 9, 12, 15, and 18-lead configurations
Connectivity: Wi-Fi and mobile network compatibility
Data Export Formats: Carewell EKG, PDF, BMP, HL7, DICOM, SCP
